Traefik Setup

schedule Published: September 20, 2025

update Last updated: December 14, 2025

Production-ready setup for FileBrowser Quantum and OnlyOffice behind Traefik reverse proxy with automatic HTTPS certificates from Let’s Encrypt.

info

This guide is community-contributed. Special thanks to @Kurami32 for sharing this working setup!

Overview

In this guide we’ll use Docker compose to setup FileBrowser Quantum and OnlyOffice behind Traefik Reverse Proxy for a secure production-ready deployment. You can use this guide as reference. If you want to copy-paste you also can, but remember to change all the fake info here with your own.

That said, this guide will cover:

✅ Automatic HTTPS and certificate renewal with Let’s Encrypt certificates, this is managed automatically by Traefik (every 60 days aprox).
✅ Secure JWT authentication between services (FileBrowser and OnlyOffice).
✅ Docker compose with Traefik labels configuration for the services.
✅ A Production-ready setup with proper security headers.

Pre-requisites

Docker and Docker Compose installed, see how to install docker for your respective OS.
A valid and working Domain name with a DDNS provider configured which is required for Let’s Encrypt DNS Challenge in traefik.
DDNS provider (Dynu, Cloudflare, DuckDNS, etc) - See supported providers
Basic understanding of Traefik, Docker, and Docker compose in general.
Email address for Let’s encrypt.

warning

You must have a valid domain name and configure your DDNS provider pointing to your domain for Let’s Encrypt to work. If your use Local IPs directly in Traefik, will not work.

However, if you don’t have you own domain, you can bind your local IP or hostname to your DDNS provider and use one of the free domains that they offer but I’m not sure if will work when exposing services publicly.

Directory Structure

A quick overview of how will look your directory structure following the steps in the guide:

info

Note: The .env files on each directory of the services are environment files used to store sensitive information, they should go on the root folder of each service that you want to deploy, in this case, we are deploying three services Traefik, Filebrowser Quantum and OnlyOffice, so each directory should have its own .env file.

And make sure to replace all the info of the .env files with your own.

SHELL
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
services/
├── filebrowser/
│   ├── data/
│   │   ├── config.yaml        # Your filebrowser configuration
│   │   └── database.db        # Database of filebrowser
│   ├── docker-compose.yaml    # Filebrowser compose file
│   └── .env                   # Environment file for filebrowser
├── onlyoffice/
│   ├── docker-compose.yaml    # Onlyoffice compose file
│   └── .env                   # Environment file for onlyofffice
└── traefik/
    ├── certs/
    │   └── acme.json          # Should have chmod 600 permissions, all the certificates will be stored on this file.
    ├── config/
    │   ├── dynamic/
    │   │   └── middlewares.yaml  # Dynamic config (File provider) of traefik, used for the security headers.
    │   └── static/
    │       └── traefik.yaml   # Static config of traefik
    ├── docker-compose.yaml    # Traefik compose file
    └── .env                   # Environment file for Traefik

Step 1: Create Docker Network

All the three services must be on the same network:

SHELL
1
2
3
4
5
6
7
docker network create \
  --driver=bridge \
  --subnet=192.168.2.0/24 \
  --gateway=192.168.2.1 \
  --ip-range=192.168.2.128/25 \
  --label=Reserved_IPs="192.168.2.2-127" \
  proxy_network

info

Network Explanation:

subnet: Network range for all the containers.
gateway: Router IP for the network.
ip-range: Dynamic IP allocation for containers without static assignment - from 128 to 255.
label: Reserved IPs for containers that need them - from 2 to 127.

Which this command do is create a virtual docker network with the subnet 192.168.2.0/24 and reserve half of the IP addresses available (from 192.168.2.2 to 192.168.2.127). The reserved IPs are for containers that you don’t want to be changing its IP each time that you restart them, and how they are reserved, docker will not use them for its auto-allocation.

For assing static IPs to a container, you will need to specify the IP on the docker compose file of your service, below of the name of your docker network. For example:

YAML
1
2
3
4
5
6
services:
  filebrowser:
    image: gtstef/filebrowser:latest
    networks:
      proxy_network:                # Name of the docker network
        ipv4_address: 192.168.2.5   # IP adress that you want to use with the service, the IP will be static, don't will change.

If you don’t want to reserve IPs, you can use this simplified version:

SHELL
1
docker network create --driver=bridge proxy_network

Docker will manage all auto-allocate all the IPs dynamically, and will assing a available network subnet automatically. You will not have static or reserved IPs, but is fine, on this guide we will use the containers with dynamic IPs, but if you want to use a static IP, you can add the ipv4 option on the docker compose files.

Step 2: Setup Traefik

Create Traefik Directory

SHELL
1
2
mkdir services && cd services
mkdir -p traefik/certs traefik/config/dynamic traefik/config/static

Traefik Docker Compose

Create traefik/docker-compose.yaml:

YAML
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
services:
  traefik:
    image: traefik:latest
    container_name: traefik
    security_opt:
      - no-new-privileges=true
    ports:
      - "80:80"
      - "443:443"
    environment:
      - DYNU_API_KEY=${DYNU_API_KEY} # we are using dynu - check the traefik documentation about other providers
      - TRAEFIK_DASHBOARD_CREDENTIALS=${TRAEFIK_DASHBOARD_CREDENTIALS}
    volumes:
      - /etc/localtime:/etc/localtime:ro
      - /var/run/docker.sock:/var/run/docker.sock:ro
      - ./config/static/traefik.yaml:/etc/traefik/traefik.yaml:ro
      - ./certs/acme.json:/var/traefik/certs/acme.json:rw
      - ./config/dynamic:/etc/traefik/config:ro
    networks:
      - proxy_network
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.traefik.tls=true"
      - "traefik.http.routers.traefik.entrypoints=websecure"
      - "traefik.http.routers.traefik.tls.certresolver=letsencrypt"
      - "traefik.http.routers.traefik.tls.options=default"
      - "traefik.http.routers.traefik.rule=Host(`traefik.${DOMAIN_NAME}`)"
      - "traefik.http.routers.traefik.tls.domains[0].main=${DOMAIN_NAME}"
      - "traefik.http.routers.traefik.tls.domains[0].sans=*.${DOMAIN_NAME}"
      - "traefik.http.routers.traefik.service=api@internal"
      - "traefik.http.services.traefik.loadbalancer.server.port=8080"
      - "traefik.http.services.traefik.loadbalancer.passhostheader=true"
      - "traefik.http.routers.traefik.middlewares=security-headers@file"

      # Basic auth on dashboard
      - "traefik.http.routers.traefik.middlewares=traefik-auth"
      - "traefik.http.middlewares.traefik-auth.basicauth.users=${TRAEFIK_DASHBOARD_CREDENTIALS}"

    restart: unless-stopped

networks:
  proxy_network:
    external: true

Traefik Environment File

Create traefik/.env:

BASH
1
2
3
4
5
DOMAIN_NAME=your-domain.com         # Your root domain here.
DYNU_API_KEY=your-dynu-api-key-here # DDNS API Key (we are using dynu - check the traefik documentation about other providers)

# Generate with: docker run --rm httpd:alpine htpasswd -nb your-username your-password | sed -e 's/\$/\$\$/g'
TRAEFIK_DASHBOARD_CREDENTIALS=your-username:$$apr1$$5CK4UFEP$$gE8rmbSMI0Lfb9vPE9I2j/

Generate dashboard credentials:

Replace your-username and your-password with your own user and password, then paste the output in the .env file we created.

BASH
1
docker run --rm httpd:alpine htpasswd -nb your-username your-password | sed -e 's/\$/\$\$/g'

Create Certificate File

BASH
1
2
touch traefik/certs/acme.json
chmod 600 traefik/certs/acme.json

report

The acme.json file must have 600 permissions, this is for security. With that permissions only the Traefik process (and you user) is able to access (read an write) the certificates stored on that file.

Also BE SURE that you have a copy of that file, because there is where the certificates will be stored.

Traefik Configuration

Create traefik/config/static/traefik.yaml:

YAML
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
global:
  checkNewVersion: true      # Check if new version of traefik is available
  sendAnonymousUsage: false

api:
  dashboard: true
  insecure: false

# Log level. You can use DEBUG initially for see if the certificates are being pulled correctly
log:
  level: INFO # DEBUG, INFO, WARN, ERROR, FATAL, PANIC

entryPoints:
  web:
    address: :80
    http:
      redirections:
        entryPoint:
          to: websecure
          scheme: https
          permanent: true

  websecure:
    address: :443
    http:
      tls:
        certResolver: letsencrypt
    transport:
      respondingTimeouts:
        readTimeout: "300s"
        writeTimeout: "300s"
        idleTimeout: "360s"
    http2:
      maxConcurrentStreams: 500
    asDefault: true

serversTransport:
  insecureSkipVerify: false
  forwardingTimeouts:
    dialTimeout: "60s"           # Time to establish TCP connection
    responseHeaderTimeout: "60s" # Time for backend to send headers
    idleConnTimeout: "90s"

http:
  timeouts:
    readTimeout: "300s"
    writeTimeout: "300s"
    idleTimeout: "360s"

tls:
  options:
    modern:
      minVersion: 'VersionTLS13'
    default:
      minVersion: 'VersionTLS12'
      cipherSuites:
        - 'TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256'
        - 'TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256'
        - 'TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384'
        - 'TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384'
        - 'TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305'
        - 'TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305'

providers:
  docker:
    endpoint: "unix:///var/run/docker.sock"
    network: "proxy_network"
    exposedByDefault: false
  file:
    directory: "/etc/traefik/config" # Directory mounted in the compose file, here we will define our security headers for the services - Also called File Provider
    watch: true

certificatesResolvers:
  letsencrypt:
    acme:
      email: your-email@provider.com  # Replace with your email
      storage: /var/traefik/certs/acme.json
      # Use staging first for testing first:
      # caServer: https://acme-staging-v02.api.letsencrypt.org/directory
      # Then switch to production:
      caServer: https://acme-v02.api.letsencrypt.org/directory # certificates for production
      dnsChallenge:
        provider: dynu
        resolvers:
        - "1.1.1.1:53"
        - "1.0.0.1:53"
        # Uncomment if having issues when pulling the certificates.
        # disablePropagationCheck: true
        # delayBeforeCheck: "60s"

warning

Important Configuration Updates:

Replace your-email@provider.com with your actual email.
Change dynu with your DDNS provider and update the traefik compose and .env if you do.
Start with staging caServer for testing, then switch to production. Let’s encrypt has a rate-limit, so if something goes wrong you are testing first.

The staging caServer will not give you valid TLS certificates (you will have a warning saying that the site is not secure), but you can see that they are coming from Let’s encrypt on your browser, so that is how you test that is working.

Define the security middleware headers:

They will go in our dynamic config directory of traefik (Also called File Provider).

Create traefik/config/dynamic/middlewares.yaml:

YAML
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
http:
#  Each middleware defined need to be referenced in each service docker-compose via labels to use them.
  middlewares:
    # Global security headers
    security-headers:
      headers:
        frameDeny: true
        sslRedirect: true
        browserXssFilter: true
        contentTypeNosniff: true
        forceSTSHeader: true
        stsIncludeSubdomains: true
        stsPreload: true
        stsSeconds: 15552000
        customFrameOptionsValue: "SAMEORIGIN"
        referrerPolicy: "strict-origin-when-cross-origin"
        customRequestHeaders:
          X-Forwarded-Proto: "https"
          X-Real-IP: "true"
          X-Forwarded-For: "true"

    # Same as security headers, but letting the site being embedded (allowing i-frames) which onlyoffice needs.
    no-frame-block:
      headers:
        sslRedirect: true
        browserXssFilter: true
        contentTypeNosniff: true
        forceSTSHeader: true
        stsIncludeSubdomains: true
        stsPreload: true
        stsSeconds: 15552000
        referrerPolicy: "strict-origin-when-cross-origin"
        customRequestHeaders:
          X-Forwarded-Proto: "https"
          X-Real-IP: "true"
          X-Forwarded-For: "true"

    # This middleware is to disable buffering, only use it if you have issues with SSE or uploading large files to filebrowser
    limit:
      buffering:
        maxRequestBodyBytes: 0
        maxResponseBodyBytes: 0
        memRequestBodyBytes: 0
        memResponseBodyBytes: 0


    # This middleware is more for internal services, like APIs or databases.
    security-minimal:
      headers:
        sslRedirect: true
        contentTypeNosniff: true
        stsPreload: true
        customRequestHeaders:
          X-Forwarded-Proto: "https"

Deploy Traefik

Just like any other service using docker compose. You should be on the directory where you docker-compose.yaml is located and:

`1`	`docker compose up -d`

See the logs of traefik to see what’s happening (CTRL+C to exit):

`1`	`docker logs traefik -f`

Test that traefik is working

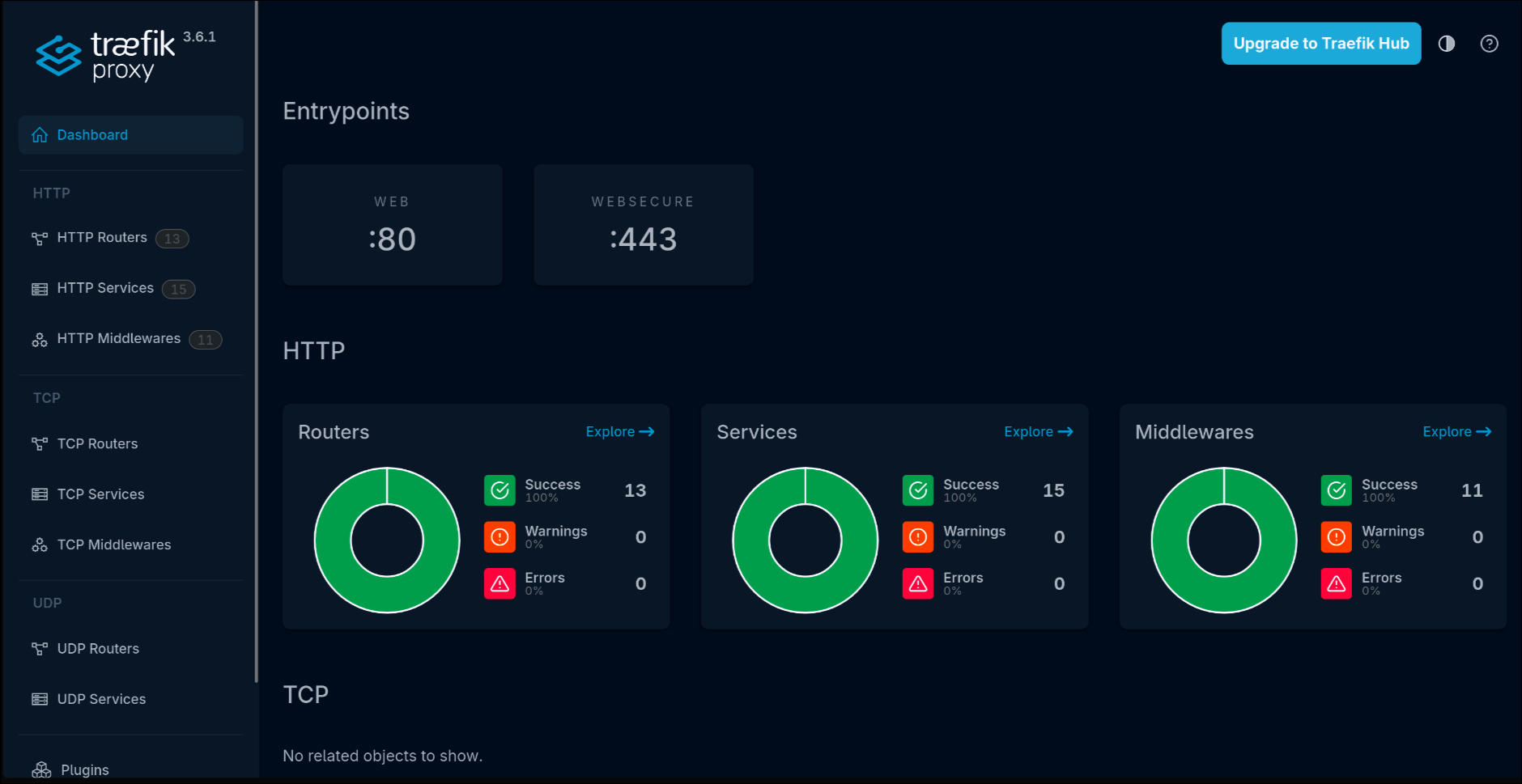

For test if traefik is working you can visit the dashboard of traefik at: https://traefik.your-domain.com (the domain that you used on the .env file), and log in with the credentials that you generated before.

If the page is working you did all correctly! Let’s go with Filebrowser and OnlyOffice now.

report

Once you tested that all is working on the staging server, before you change to production BE SURE that you deleted the acme.json file first before pulling the new production certificates. You can just delete the content inside, or recreate the file again:

SHELL
1
2
3
rm -rf traefik/certs/acme.json
touch traefik/certs/acme.json
chmod 600 traefik/certs/acme.json

After that wait ~5 minutes and test with the production certs.

Step 3: Setup OnlyOffice

Create OnlyOffice Directory

BASH
1
2
cd services # the same directory where traefik is
mkdir -p onlyoffice

OnlyOffice Docker Compose

Create onlyoffice/docker-compose.yaml:

YAML
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
services:
  onlyoffice:
    container_name: onlyoffice
    image: onlyoffice/documentserver
    environment:
      TZ: $TZ
      JWT_SECRET: $ONLYOFFICE_SECRET
      ONLYOFFICE_HTTPS_HSTS_ENABLED: false
    #ports:
     # - '8081:80'  # Commented out because traefik will handle it.
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.${TRAEFIK_SERVICE_NAME}.tls=true"
      - "traefik.http.routers.${TRAEFIK_SERVICE_NAME}.entrypoints=websecure"
      - "traefik.http.routers.${TRAEFIK_SERVICE_NAME}.tls.certresolver=letsencrypt"
      - "traefik.http.routers.${TRAEFIK_SERVICE_NAME}.tls.options=default"
      - "traefik.http.routers.${TRAEFIK_SERVICE_NAME}.rule=Host(${DOMAIN_NAME})"
      - "traefik.http.routers.${TRAEFIK_SERVICE_NAME}.service=${TRAEFIK_SERVICE_NAME}"
      - "traefik.http.services.${TRAEFIK_SERVICE_NAME}.loadbalancer.server.port=${TRAEFIK_SERVICE_PORT}"
      - "traefik.http.services.${TRAEFIK_SERVICE_NAME}.loadbalancer.passhostheader=true"
      - "traefik.http.routers.${TRAEFIK_SERVICE_NAME}.middlewares=no-frame-block@file"   # no-frame-block header that we defined in the middlewares.yaml config file.

      # Headers for onlyoffice, see https://github.com/ONLYOFFICE/onlyoffice-nextcloud/issues/151 for details
      - "traefik.http.middlewares.${TRAEFIK_SERVICE_NAME}-headers.headers.accesscontrolalloworiginlist=*"
    networks:
      proxy_network:
    restart: unless-stopped

networks:
  proxy_network:
    external: true

info

Critical for OnlyOffice:

accesscontrolalloworiginlist=*: Middleware required for CORS - without this onlyoffice don’t will work with filebrowser and you will run into issues.
ONLYOFFICE_HTTPS_HSTS_ENABLED: false: Since traefik will handle HTTPS, not OnlyOffice.
We should use the no-frame-block middleware instead of security-headers to allow onlyoffice to be embedded into FileBrowser.

Generate JWT Secret

BASH
1
2
openssl rand -base64 32
# Example output: KDSpcNwKAos2moijgdfi9jf9wr3wek=

info

Save this secret - you’ll need it for both FileBrowser, and OnlyOffice configuration .env file.

OnlyOffice Environment File

Create onlyoffice/.env:

BASH
1
2
3
4
5
TRAEFIK_SERVICE_NAME=onlyoffice
TRAEFIK_SERVICE_PORT=80
DOMAIN_NAME=`office.yourdomain.com`   # Don't forget the backticks, they are critical for traefik
ONLYOFFICE_SECRET=KDSpcNwKAos2moijgdfi9jf9wr3wek=  # Your output of the openssl command
TZ=America/New_York  # Your timezone

Deploy OnlyOffice

`1`	`docker compose up -d`

Check the logs to see what’s happening (CTRL+C to exit):

`1`	`docker logs onlyoffice -f`

Test that OnlyOffice is working

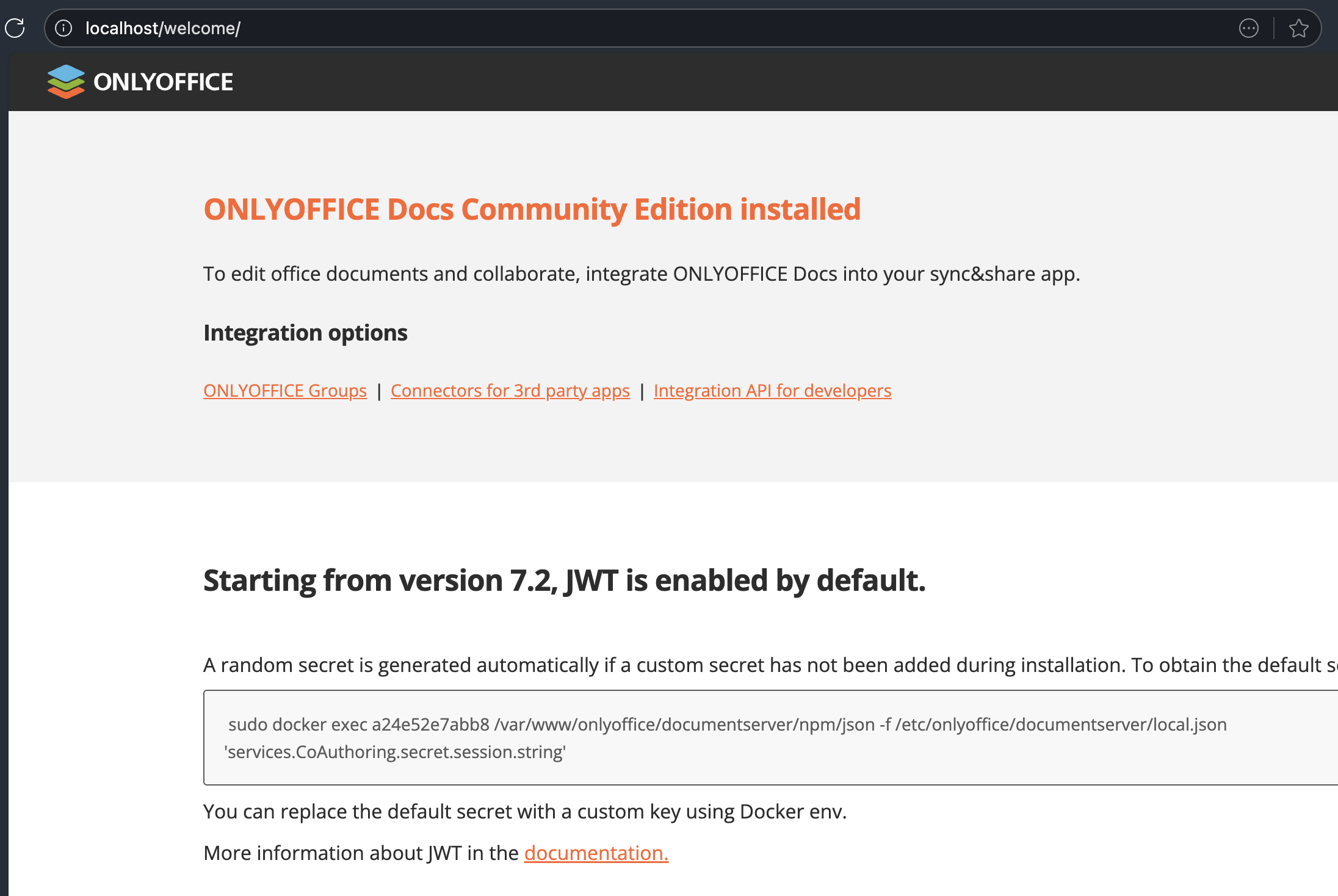

Visit your onlyoffice URL on your browser (https://office.yourdomain.com) , you should see something like this:

You can also verify with curl:

SHELL
1
2
curl https://office.yourdomain.com/healthcheck
# Should return "true", that means that the healthcheck is active and working

Step 4: Setup FileBrowser Quantum

Now let’s go with Filebrowser!

Create Filebrowser Directory

BASH
1
2
3
cd services  # the same directory where traefik and onlyoffice are.
mkdir -p filebrowser/data
touch filebrowser/data/database.db

FileBrowser Docker Compose

info

Similar to getting started docker guide but customized to work with traefik. Remember to change the volumes block with your actual data or folders (Sources), the ones here an example.

Create filebrowser/docker-compose.yaml:

YAML
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
services:
  filebrowser:
    container_name: filebrowser
    image: gtstef/filebrowser:latest
    env_file: .env
    environment:
      FILEBROWSER_CONFIG: "data/config.yaml"
      FILEBROWSER_DATABASE: "data/database.db"
      FILEBROWSER_ADMIN_PASSWORD: ${FILEBROWSER_ADMIN_PASSWORD}
      TZ: ${TZ}
    volumes:
      - './data:/home/filebrowser/data'
      - '/files:/files'
      - '/other/path/media:/media'
    user: filebrowser
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.${TRAEFIK_SERVICE_NAME}.tls=true"
      - "traefik.http.routers.${TRAEFIK_SERVICE_NAME}.entrypoints=websecure"
      - "traefik.http.routers.${TRAEFIK_SERVICE_NAME}.tls.certresolver=letsencrypt"
      - "traefik.http.routers.${TRAEFIK_SERVICE_NAME}.tls.options=default"
      - "traefik.http.routers.${TRAEFIK_SERVICE_NAME}.rule=Host(${DOMAIN_NAME})"
      - "traefik.http.routers.${TRAEFIK_SERVICE_NAME}.service=${TRAEFIK_SERVICE_NAME}"
      - "traefik.http.services.${TRAEFIK_SERVICE_NAME}.loadbalancer.server.port=${TRAEFIK_SERVICE_PORT}"
      - "traefik.http.services.${TRAEFIK_SERVICE_NAME}.loadbalancer.passhostheader=true"
      - "traefik.http.routers.${TRAEFIK_SERVICE_NAME}.middlewares=security-headers@file" # Security headers, you can also add the 'limit' middleware if you have issues with large file uploads.  'security-headers@file,limit@file'

    networks:
      proxy_network:
    restart: unless-stopped

networks:
  proxy_network:
    external: true

FileBrowser Environment File

Create filebrowser/.env:

BASH
1
2
3
4
5
FILEBROWSER_ADMIN_PASSWORD=YourSecurePassword
DOMAIN_NAME=files.yourdomain.com
TRAEFIK_SERVICE_NAME=filebrowser
TRAEFIK_SERVICE_PORT=80
TZ=America/New_York # Your Timezone

FileBrowser Configuration

See configuration overview if you want better explanations about the config file.

Create filebrowser/data/config.yaml:

YAML
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
server:
  port: 80
  baseURL: "/"
  sources:
  # Sources for filebrowser, the path should match your volume mount (of the right)
    - path: "/files"
      name: "Files"
      config:
        defaultEnabled: true
        createUserDir: true
    - path: "/media"
      name: "Media"
      config:
        defaultEnabled: false
        createUserDir: false

  # Critical for OnlyOffice integration
  externalUrl: "https://files.yourdomain.com"
  internalUrl: "http://filebrowser:80"

auth:
  tokenExpirationHours: 6
  adminUsername: admin   # Your admin username, change this.
  methods:
    password:
      enabled: true
      minLength: 5 # Minimum lenght of the password
      signup: false

userDefaults:
  darkMode: true
  locale: "en"
  disableOnlyOfficeExt: ".txt .html .md"

integrations:
  office:
    url: "https://office.yourdomain.com"       # The URL to the OnlyOffice Server that you defined in the onlyoffice .env
    internalUrl: "http://onlyoffice:80"        # Optional internal URL, uses the container name to communicate.
    secret: "KDSpcNwKAos2moijgdfi9jf9wr3wek="  # Should be the SAME as OnlyOffice secret (also in onlyoffice .env)
    viewOnly: false

warning

Critical Configuration:

server.externalUrl: Must match your FileBrowser domain configured in .env file.
server.internalUrl: Uses Docker service name onlyoffice and its internal port (80).
integrations.office.url: Must match your OnlyOffice domain configured on the .env file of OnlyOffice.
integrations.office.secret: Must match OnlyOffice JWT_SECRET exactly (also in the onlyoffice .env)

Deploy FileBrowser

`1`	`docker compose up -d`

Check the logs to see what is happening (CTRL+C to exit):

`1`	`docker logs filebrowser -f`

Test that FileBrowser is working

Open your filebrowser domain on your browser (https://files.yourdomain.com), you should see the login page.
Login with your credentials that you configured in both: The password in the .env file, and the username in config.yaml.

Testing the Integration

Navigate to your filebrowser domain (https://files.yourdomain.com), and login.
Upload a test .docx (or any document) file.
Open the file - The file should open in OnlyOffice.
If all loaded fine, try to make edits and then save.
Verify changes persisted (close and open the file again)

Enable Debug Mode

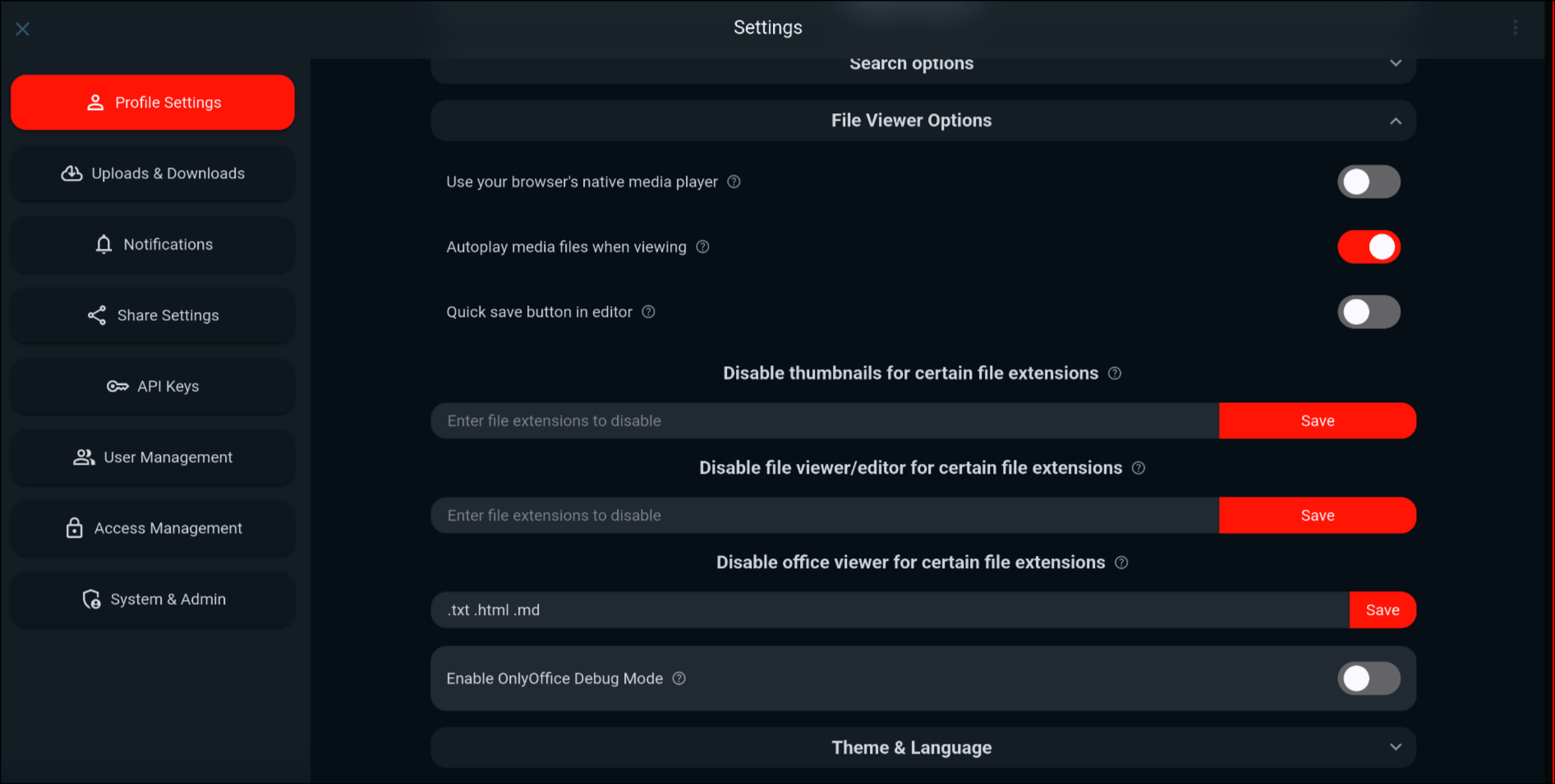

If you have issues with onlyoffice, you should enable the office debug mode in filebrowser. To do that go to settings -> profile settings -> File Viewer Options in UI and enable the debug mode.

After that open any document and check the debug window, also check the logs of both containers as well. See troubleshooting for more detailed solutions.

Certificate Management

Check Certificate Status

You will need to have the jq package installed if you want a colored output.

BASH
1
2
3
4
5
# View certificate details
docker exec traefik cat /var/traefik/certs/acme.json | jq

# Check certificate expiration
openssl s_client -connect files.yourdomain.com:443 -servername files.yourdomain.com < /dev/null 2>/dev/null | openssl x509 -noout -dates

Certificate Renewal

Traefik automatically renews certificates 30 days before expiration. No manual action needed!

Force Renewal (if needed):

Navigate to your traefik directory.

BASH
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
# Stop Traefik
docker compose down -v

# Backup and clear certificates
cp certs/acme.json certs/acme.json.bak
rm -rf certs/acme.json
touch certs/acme.json
chmod 600 certs/acme.json

# Restart Traefik (will request new certificates)
docker compose up -d --force-recreate

Maintenance

Update Services

info

You will need to navigate to the directory of each service (where the docker-compose.yaml is) and do the next commands on each.

BASH
1
2
docker compose pull                     # Pull the latest image available of the service.
docker compose up -d --force-recreate   # Re-create the container and restart it automatically.

View Logs

BASH
1
docker logs filebrowser -f # or onlyoffice, traefik (by service name)

Troubleshooting

Certificates Not Generating

If you notice that you certificates are not being generated, the first thing that you should do is check your traefik logs.

First enable DEBUG logs in the traefik.yaml config file:

YAML
1
2
log:
  level: DEBUG # DEBUG, INFO, WARN, ERROR, FATAL, PANIC

Then restart the service and check the logs:

BASH
1
2
docker restart traefik
docker logs traefik -f | grep acme

Also try uncommenting the last lines on the traefik.yaml config file.
And check the acme.json file. You should see the certificates there, for that, first navigate to the directory where your services are, then do this command:

SHELL
1
2
# jq is optional, is just for colorize the output.
cat traefik/certs/acme.json | jq

Common issues:

Wrong DDNS API key, make sure that you copied it correctly from your DDNS provider.
TXT records could not be propagated yet, you will need to wait a bit if is the first pulling the certificates, can take around 5 minutes.
Maybe you were rate-limited due to multiple certs generation, you should use staging first for test, that way you’re not rate-limited.
Wrong acme.json permissions.
Wrong domain.

OnlyOffice Shows Blank Screen

Check if OnlyOffice is healthy/running:

`1`	`curl https://office.yourdomain.com/healthcheck`

Or visit your onlyoffice domain on the browser, the page should load.

Verify JWT secrets match. Should be same on onlyoffice and filebrowser.
Check browser console for CORS errors.
Enable office debug mode in FileBrowser.

Also ensure that all the external URLs use https://:

YAML
1
2
3
4
5
6
7
8
server:
  externalUrl: "https://files.yourdomain.com"
  internalUrl: "http://filebrowser:80"

integrations:
  office:
    url: "https://office.yourdomain.com"
    internalUrl: "http://onlyoffice:80"

Other issues

If you have other issues related with onlyoffice and filebrowser, you should check the Office Troubleshooting guide, which covers some of the most commons issues with solutions.

External Resources

Next Steps

Advanced HTTPS Configuration - Self-signed certificates and traefik file provider
Office Troubleshooting - Detailed troubleshooting guide
Configuration Reference - All configuration options

Credits

This guide is a community-contributed guide by @Kurami32. Thank you for sharing your working setup!

Office Integration Guides

Self-signed certificates with Traefik

Traefik Setup

Overview link

Pre-requisites link

Directory Structure link

Step 1: Create Docker Network link

Step 2: Setup Traefik link

Create Traefik Directory link

Traefik Docker Compose link

Traefik Environment File link

Create Certificate File link

Traefik Configuration link

Define the security middleware headers: link

Deploy Traefik link

Test that traefik is working link

Step 3: Setup OnlyOffice link

Create OnlyOffice Directory link

OnlyOffice Docker Compose link

Generate JWT Secret link

OnlyOffice Environment File link

Deploy OnlyOffice link

Test that OnlyOffice is working link

Step 4: Setup FileBrowser Quantum link

Create Filebrowser Directory link

FileBrowser Docker Compose link

FileBrowser Environment File link

FileBrowser Configuration link

Deploy FileBrowser link

Test that FileBrowser is working link

Testing the Integration link

Enable Debug Mode link

Certificate Management link

Check Certificate Status link

Certificate Renewal link

Maintenance link

Update Services link

View Logs link

Troubleshooting link

Certificates Not Generating link

OnlyOffice Shows Blank Screen link

Other issues link

External Resources link

Next Steps link

Credits link

Overview

Pre-requisites

Directory Structure

Step 1: Create Docker Network

Step 2: Setup Traefik

Create Traefik Directory

Traefik Docker Compose

Traefik Environment File

Create Certificate File

Traefik Configuration

Define the security middleware headers:

Deploy Traefik

Test that traefik is working

Step 3: Setup OnlyOffice

Create OnlyOffice Directory

OnlyOffice Docker Compose

Generate JWT Secret

OnlyOffice Environment File

Deploy OnlyOffice

Test that OnlyOffice is working

Step 4: Setup FileBrowser Quantum

Create Filebrowser Directory

FileBrowser Docker Compose

FileBrowser Environment File

FileBrowser Configuration

Deploy FileBrowser

Test that FileBrowser is working

Testing the Integration

Enable Debug Mode

Certificate Management

Check Certificate Status

Certificate Renewal

Maintenance

Update Services

View Logs

Troubleshooting

Certificates Not Generating

OnlyOffice Shows Blank Screen

Other issues

External Resources

Next Steps

Credits
